Animator for switching views in SStackView. More...

#include <SStackView.h>

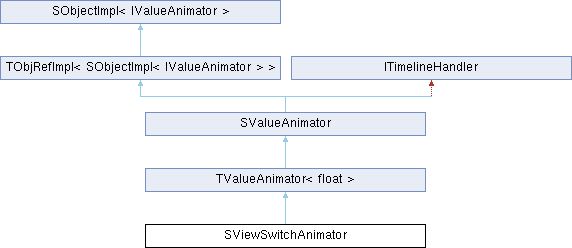

Inheritance diagram for SViewSwitchAnimator:

Public Member Functions
	SViewSwitchAnimator (SStackView *pOwner)
	Constructor for SViewSwitchAnimator.

IValueAnimator *	clone () SCONST OVERRIDE
	Clones the animator.

void	onEvaluateValue (float fraction) OVERRIDE
	Evaluates the value at a given fraction.

void	start (ITimelineHandlersMgr *pTimerlineMgr) OVERRIDE
	Starts the animation.

void	SetFrom (int iChild)
	Sets the starting child index.

int	GetFrom () const
	Gets the starting child index.

void	SetTo (int iChild)
	Sets the ending child index.

int	GetTo () const
	Gets the ending child index.

void	OnOwnerResize ()
	Handles owner resize.

void	SetOwnerSizeRange (SIZE szFrom, SIZE szTo)
	Sets the owner size range.

BOOL	IsOwnerResize () const
	Checks if owner resize is enabled.

void	DisableOwnerResize ()
	Disables owner resize.

SIZE	GetOwnerSize () const
	Gets the owner size.

StackViewAniStyle	GetAniStyle () const
	Gets the animation style.

Public Member Functions inherited from TValueAnimator< float >
	TValueAnimator (float from, float to)
	Constructor.

float	getValue () const
	Gets the current animated value.

void	setRange (float from, float to)
	Sets the range of the animation.

void	copy (const IValueAnimator *pSrc) OVERRIDE
	Copies the properties of another animation to this animation.

virtual HRESULT	SetAttribute (const SNS::SStringW &amp;amp;amp;strAttribName, const SNS::SStringW &amp;amp;amp;strValue, BOOL bLoading=FALSE)
	Defines the attributes for TValueAnimator.

Public Member Functions inherited from SValueAnimator
	SValueAnimator ()
	Creates a new SValueAnimator object.

	~SValueAnimator ()
	Destructor.

void	setDuration (long duration) OVERRIDE
	Sets the length of the animation.

long	getDuration () SCONST OVERRIDE
	Gets the length of the animation.

long	getTotalDuration () SCONST OVERRIDE
	Gets the total duration of the animation, including any repetitions.

void	setCurrentPlayTime (long playTime) OVERRIDE
	Sets the position of the animation to the specified point in time.

void	setCurrentFraction (float fraction) OVERRIDE
	Sets the position of the animation to the specified fraction.

long	getCurrentPlayTime () OVERRIDE
	Gets the current position of the animation in time.

long	getStartDelay () SCONST OVERRIDE
	Gets the amount of time, in milliseconds, to delay starting the animation after start() is called.

void	setStartDelay (long startDelay) OVERRIDE
	Sets the amount of time, in milliseconds, to delay starting the animation after start() is called.

void	setRepeatCount (int value) OVERRIDE
	Sets how many times the animation should be repeated.

int	getRepeatCount () SCONST OVERRIDE
	Defines how many times the animation should repeat.

void	setRepeatMode (RepeatMode value) OVERRIDE
	Defines what this animation should do when it reaches the end.

RepeatMode	getRepeatMode () SCONST OVERRIDE
	Defines what this animation should do when it reaches the end.

void	addUpdateListener (IAnimatorUpdateListener *listener) OVERRIDE
	Adds a listener to the set of listeners that are sent update events through the life of an animation.

void	removeAllUpdateListeners () OVERRIDE
	Removes all listeners from the set listening to frame updates for this animation.

void	removeUpdateListener (IAnimatorUpdateListener *listener) OVERRIDE
	Removes a listener from the set listening to frame updates for this animation.

void	setInterpolator (IInterpolator *value) OVERRIDE
	Sets the time interpolator used in calculating the elapsed fraction of this animation.

IInterpolator *	getInterpolator () SCONST OVERRIDE
	Returns the timing interpolator that this SValueAnimator uses.

void	addListener (IAnimatorListener *p) OVERRIDE
	Adds an animator listener.

void	removeListener (IAnimatorListener *p) OVERRIDE
	Removes an animator listener.

void	start (ITimelineHandlersMgr *pContainer) OVERRIDE
	Starts the animation playing.

void	end () OVERRIDE
	Ends the animation.

BOOL	isRunning () SCONST OVERRIDE
	Checks if the animation is running.

BOOL	isStarted () SCONST OVERRIDE
	Checks if the animation has been started.

void	reverse () OVERRIDE
	Plays the SValueAnimator in reverse.

IValueAnimator *	clone () SCONST OVERRIDE
	Creates a clone of the current animation.

void	copy (const IValueAnimator *pSrc) OVERRIDE
	Copies the properties of another animation to this animation.

void	commitAnimationFrame (long frameTime) OVERRIDE
	Applies an adjustment to the animation to compensate for jank between when the animation first ran and when the frame was drawn.

float	getAnimatedFraction () SCONST OVERRIDE
	Returns the current animation fraction.

void	OnNextFrame () OVERRIDE
	Handles the next frame of the animation.

Public Member Functions inherited from TObjRefImpl< SObjectImpl< IValueAnimator > >
	TObjRefImpl ()
	Constructor that initializes the reference count to 1.

virtual	~TObjRefImpl ()
	Virtual destructor.

long	AddRef () override
	Increments the reference count.

long	Release () override
	Decrements the reference count and deletes the object if the count reaches zero.

void	OnFinalRelease () override
	Deletes the object.

Public Member Functions inherited from SObjectImpl< IValueAnimator >
	SObjectImpl ()
	Constructor.

BOOL	InitFromXml (IXmlNode *pXmlNode) OVERRIDE
	Initializes the object from an XML node.

LPCWSTR	GetName () SCONST OVERRIDE
	Retrieves the object's name.

LPCSTR	GetNameA () SCONST OVERRIDE
	Retrieves the object's name in ANSI format.

void	SetName (LPCWSTR pszName) OVERRIDE
	Sets the object's name.

int	GetID () SCONST OVERRIDE
	Retrieves the object's ID.

void	SetID (int nID) OVERRIDE
	Sets the object's ID.

HRESULT	AfterAttribute (LPCWSTR strAttribName, LPCWSTR strValue, BOOL bLoading, HRESULT hr) OVERRIDE
	Handles attribute processing after setting an attribute.

HRESULT	SetAttributeA (LPCSTR pszAttr, LPCSTR pszValue, BOOL bLoading) OVERRIDE
	Sets an attribute using ANSI strings.

HRESULT	SetAttribute (LPCWSTR pszAttr, LPCWSTR pszValue, BOOL bLoading) OVERRIDE
	Sets an attribute using wide strings.

virtual HRESULT	SetAttribute (const SStringW &strAttr, const SStringW &strValue, BOOL bLoading)
	Sets an attribute using wide strings.

HRESULT	ISetAttribute (const IStringW strAttr, const IStringW strValue, BOOL bLoading) OVERRIDE
	Sets an attribute using IStringW objects.

LPCWSTR	GetObjectClass () SCONST OVERRIDE
	Retrieves the object's class name.

int	GetObjectType () SCONST OVERRIDE
	Retrieves the object's type.

BOOL	IsClass (LPCWSTR lpszName) SCONST OVERRIDE
	Checks if the object is of a specific class.

BOOL	GetAttribute (LPCWSTR strAttr, IStringW *pValue) SCONST OVERRIDE
	Retrieves an attribute value.

void	OnInitFinished (IXmlNode *xmlNode) OVERRIDE
	Handles initialization completion.

void	SetAttrHandler (FunAttrHandler attrHandler) OVERRIDE
	Sets the attribute handler.

virtual HRESULT	DefAttributeProc (const SStringW &strAttr, const SStringW &strValue, BOOL bLoading)
	Default attribute processing.

Protected Member Functions
void	initEvaluator ()
	Initializes the evaluators.

Protected Member Functions inherited from TValueAnimator< float >
void	onEvaluateValue (float fraction) OVERRIDE
	Evaluates the animated value based on the given fraction.

Protected Attributes
SStackView *	m_pOwner

int	m_iFrom

int	m_iTo

BOOL	m_bVertAni

StackViewAniStyle	m_aniStyle

SAutoRefPtr< IWindow >	m_pFrom

SAutoRefPtr< IWindow >	m_pTo

TypeEvaluator< RECT >	m_evalRcFrom

TypeEvaluator< RECT >	m_evalRcTo

TypeEvaluator< BYTE >	m_evalAlphaFrom

TypeEvaluator< BYTE >	m_evalAlphaTo

TypeEvaluator< SIZE >	m_evalOwnerSize

BOOL	m_isOwnerResize

Protected Attributes inherited from TValueAnimator< float >
TypeEvaluator< float >	mValueEvaluator
	Type evaluator for the animated value.

float	mValue
	Current animated value.

Protected Attributes inherited from SValueAnimator
uint64_t	mStartTime
	The first time that the animation's animateFrame() method is called.

bool	mStartTimeCommitted
	Flag indicating whether the start time has been firmly committed.

float	mSeekFraction
	Set when setCurrentPlayTime() is called.

bool	mReversing
	Flag to indicate whether this animator is playing in reverse mode.

float	mOverallFraction
	Tracks the overall fraction of the animation, ranging from 0 to mRepeatCount + 1.

float	mCurrentFraction
	Tracks current elapsed/eased fraction, for querying in getAnimatedFraction().

uint64_t	mLastFrameTime
	Tracks the time (in milliseconds) when the last frame arrived.

uint64_t	mFirstFrameTime
	Tracks the time (in milliseconds) when the first frame arrived.

bool	mRunning
	Additional playing state to indicate whether an animator has been start()'d.

bool	mStarted
	Additional playing state to indicate whether an animator has been start()'d, whether or not there is a nonzero startDelay.

bool	mStartListenersCalled
	Tracks whether we've notified listeners of the onAnimationStart() event.

bool	mInitialized
	Flag that denotes whether the animation is set up and ready to go.

bool	mAnimationEndRequested
	Flag that tracks whether animation has been requested to end.

long	mDuration
	How long the animation should last in milliseconds.

long	mStartDelay
	The amount of time in milliseconds to delay starting the animation after start() is called.

int	mRepeatCount
	The number of times the animation will repeat.

float	sDurationScale
	Scaling factor for the duration.

RepeatMode	mRepeatMode
	The type of repetition that will occur when repeatMode is nonzero.

SAutoRefPtr< IInterpolator >	mInterpolator
	The time interpolator to be used.

SArray< IAnimatorUpdateListener * >	mUpdateListeners
	The set of listeners to be sent update events through the life of an animation.

SArray< IAnimatorListener * >	mListeners

ITimelineHandlersMgr *	mContainer
	The container managing the timeline handlers.

Protected Attributes inherited from TObjRefImpl< SObjectImpl< IValueAnimator > >
LONG	m_cRef
	Reference count.

Protected Attributes inherited from SObjectImpl< IValueAnimator >
SStringW	m_strName

int	m_nID

FunAttrHandler	m_attrHandler

Additional Inherited Members
Static Public Member Functions inherited from SObjectImpl< IValueAnimator >
static int	GetClassType ()
	Retrieves the class type.

static LPCWSTR	GetClassName ()
	Retrieves the class name.

static LPCWSTR	GetClassAlias ()
	Retrieves the class alias.

static void	MarkAttributeHandled (SXmlAttr xmlAttr, bool bHandled)
	Marks an attribute as handled.

static bool	IsAttributeHandled (SXmlAttr xmlAttr)
	Checks if an attribute is handled.

Detailed Description

Animator for switching views in SStackView.

This class handles the animation when switching between views in an SStackView.

Definition at line 29 of file SStackView.h.

Constructor & Destructor Documentation

◆ SViewSwitchAnimator()

SViewSwitchAnimator::SViewSwitchAnimator ( SStackView * pOwner )

inline

Constructor for SViewSwitchAnimator.

Parameters

pOwner Pointer to the owner SStackView.

Definition at line 37 of file SStackView.h.

Member Function Documentation

◆ clone()

IValueAnimator * SViewSwitchAnimator::clone ( )

inline

Clones the animator.

Returns: Pointer to the cloned animator.

Definition at line 50 of file SStackView.h.

◆ DisableOwnerResize()

void SViewSwitchAnimator::DisableOwnerResize ( )

inline

Disables owner resize.

Definition at line 127 of file SStackView.h.

◆ GetAniStyle()

StackViewAniStyle SViewSwitchAnimator::GetAniStyle ( ) const

inline

Gets the animation style.

Returns: The animation style.

Definition at line 142 of file SStackView.h.

◆ GetFrom()

int SViewSwitchAnimator::GetFrom ( ) const

inline

Gets the starting child index.

Returns: The starting child index.

Definition at line 80 of file SStackView.h.

◆ GetOwnerSize()

SIZE SViewSwitchAnimator::GetOwnerSize ( ) const

Gets the owner size.

Returns: The owner size.

Definition at line 525 of file SStackView.cpp.

◆ GetTo()

int SViewSwitchAnimator::GetTo ( ) const

inline

Gets the ending child index.

Returns: The ending child index.

Definition at line 98 of file SStackView.h.

◆ initEvaluator()

void SViewSwitchAnimator::initEvaluator ( )

protected

Initializes the evaluators.

Definition at line 413 of file SStackView.cpp.

◆ IsOwnerResize()

BOOL SViewSwitchAnimator::IsOwnerResize ( ) const

inline

Checks if owner resize is enabled.

Returns: TRUE if owner resize is enabled, otherwise FALSE.

Definition at line 119 of file SStackView.h.

◆ onEvaluateValue()

void SViewSwitchAnimator::onEvaluateValue ( float fraction )

Evaluates the value at a given fraction.

Parameters

fraction The fraction of the animation.

Definition at line 376 of file SStackView.cpp.

◆ OnOwnerResize()

void SViewSwitchAnimator::OnOwnerResize ( )

Handles owner resize.

Definition at line 406 of file SStackView.cpp.

◆ SetFrom()

void SViewSwitchAnimator::SetFrom ( int iChild )

inline

Sets the starting child index.

Parameters

iChild The starting child index.

Definition at line 71 of file SStackView.h.

◆ SetOwnerSizeRange()

void SViewSwitchAnimator::SetOwnerSizeRange	(	SIZE	szFrom,
		SIZE	szTo )

Sets the owner size range.

Parameters

szFrom	The starting size.
szTo	The ending size.

Definition at line 519 of file SStackView.cpp.

◆ SetTo()

void SViewSwitchAnimator::SetTo ( int iChild )

inline

Sets the ending child index.

Parameters

iChild The ending child index.

Definition at line 89 of file SStackView.h.

◆ start()

void SViewSwitchAnimator::start ( ITimelineHandlersMgr * pTimerlineMgr )

Starts the animation.

Parameters

pTimerlineMgr Pointer to the timeline handlers manager.

Definition at line 340 of file SStackView.cpp.

Member Data Documentation

◆ m_aniStyle

StackViewAniStyle SViewSwitchAnimator::m_aniStyle

protected

Animation style.

Definition at line 156 of file SStackView.h.

◆ m_bVertAni

BOOL SViewSwitchAnimator::m_bVertAni

protected

Flag indicating vertical animation.

Definition at line 155 of file SStackView.h.

◆ m_evalAlphaFrom

TypeEvaluator<BYTE> SViewSwitchAnimator::m_evalAlphaFrom

protected

Definition at line 162 of file SStackView.h.

◆ m_evalAlphaTo

TypeEvaluator<BYTE> SViewSwitchAnimator::m_evalAlphaTo

protected

Evaluators for alpha animations.

Definition at line 162 of file SStackView.h.

◆ m_evalOwnerSize

TypeEvaluator<SIZE> SViewSwitchAnimator::m_evalOwnerSize

protected

Evaluator for owner size animations.

Definition at line 163 of file SStackView.h.

◆ m_evalRcFrom

TypeEvaluator<RECT> SViewSwitchAnimator::m_evalRcFrom

protected

Definition at line 161 of file SStackView.h.

◆ m_evalRcTo

TypeEvaluator<RECT> SViewSwitchAnimator::m_evalRcTo

protected

Evaluators for rectangle animations.

Definition at line 161 of file SStackView.h.

◆ m_iFrom

int SViewSwitchAnimator::m_iFrom

protected

Definition at line 154 of file SStackView.h.

◆ m_isOwnerResize

BOOL SViewSwitchAnimator::m_isOwnerResize

protected

Flag indicating if owner resize is enabled.

Definition at line 164 of file SStackView.h.

◆ m_iTo

int SViewSwitchAnimator::m_iTo

protected

Indices of the starting and ending children.

Definition at line 154 of file SStackView.h.

◆ m_pFrom

SAutoRefPtr<IWindow> SViewSwitchAnimator::m_pFrom

protected

Pointer to the starting child window.

Definition at line 158 of file SStackView.h.

◆ m_pOwner

SStackView* SViewSwitchAnimator::m_pOwner

protected

Pointer to the owner SStackView.

Definition at line 153 of file SStackView.h.

◆ m_pTo

SAutoRefPtr<IWindow> SViewSwitchAnimator::m_pTo

protected

Pointer to the ending child window.

Definition at line 159 of file SStackView.h.

The documentation for this class was generated from the following files:

SOUI/include/control/SStackView.h
SOUI/src/control/SStackView.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SViewSwitchAnimator()

Member Function Documentation

◆ clone()

◆ DisableOwnerResize()

◆ GetAniStyle()

◆ GetFrom()

◆ GetOwnerSize()

◆ GetTo()

◆ initEvaluator()

◆ IsOwnerResize()

◆ onEvaluateValue()

◆ OnOwnerResize()

◆ SetFrom()

◆ SetOwnerSizeRange()

◆ SetTo()

◆ start()

Member Data Documentation

◆ m_aniStyle

◆ m_bVertAni

◆ m_evalAlphaFrom

◆ m_evalAlphaTo

◆ m_evalOwnerSize

◆ m_evalRcFrom

◆ m_evalRcTo

◆ m_iFrom

◆ m_isOwnerResize

◆ m_iTo

◆ m_pFrom

◆ m_pOwner

◆ m_pTo
