SUiDef Class Reference

Manages UI definitions, including skins, styles, templates, gradients, and named values. More...

#include <SUiDef.h>

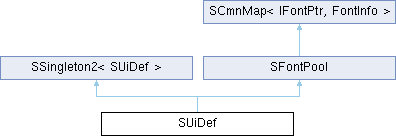

Inheritance diagram for SUiDef:

Public Member Functions
	SUiDef (IRenderFactory *fac)
	Constructor.
	~SUiDef (void)
	Destructor.
BOOL	InitDefUiDef (IResProvider *pResProvider, LPCTSTR pszUiDef)
	Initializes the default UI definition.
IUiDefInfo *	GetUiDef ()
	Retrieves the default UI definition.
void	SetUiDef (IUiDefInfo *pUiDefInfo, bool bUpdateDefFont)
	Sets the default UI definition.
void	PushUiDefInfo (IUiDefInfo *pUiDefInfo, BOOL bPreivate=FALSE)
	Pushes a new UI definition information object onto the stack.
BOOL	PopUiDefInfo (IUiDefInfo *pUiDefInfo, BOOL bPreivate=FALSE)
	Pops a UI definition information object from the stack.
void	PushSkinPool (ISkinPool *pSkinPool)
	Pushes a new skin pool onto the stack.
BOOL	PopSkinPool (ISkinPool *pSkinPool)
	Pops a skin pool from the stack.
ISkinObj *	GetSkin (const SStringW &strSkinName, int nScale)
	Retrieves a skin object by name and scale.
ISkinObj *	GetBuiltinSkin (SYS_SKIN uID, int nScale)
	Retrieves a built-in skin object by ID and scale.
ISkinPool *	GetBuiltinSkinPool ()
	Retrieves the built-in skin pool.
SXmlNode	GetStyle (const SStringW &strName)
	Retrieves a style XML node by name.
SStringW	GetTemplateString (const SStringW &strName)
	Retrieves a template string by name.
IGradient *	GetGradient (const SStringW &strName)
	Retrieves a gradient object by name.
COLORREF	GetColor (const SStringW &strColor)
	Retrieves a color value from a string.
COLORREF	GetColor (int idx)
	Retrieves a color value by index from the default resource package.
SStringW	GetString (const SStringW &strString)
	Retrieves a string value from a string name.
SStringW	GetString (int idx)
	Retrieves a string value by index from the default resource package.
SLayoutSize	GetLayoutSize (const SStringW &strSize)
	Retrieves a layout size from a string name.
SLayoutSize	GetLayoutSize (int idx)
	Retrieves a layout size by index from the default resource package.
SStringW	GetFontDesc (const SStringW &strFont)
	Retrieves a font description from a string name.
SStringW	GetFontDesc (int idx)
	Retrieves a font description by index from the default resource package.
IFontPtr	GetFont (const SStringW &strFont, int scale)
	Retrieves a font object by description and scale.
void	SetDefFontInfo (const SStringW &strFontInfo)
	Sets the default font information.
FontInfo	GetDefFontInfo () const
	Retrieves the default font information.
Public Member Functions inherited from SSingleton2< SUiDef >
	SSingleton2 (void)
	Constructor for SSingleton2.
virtual	~SSingleton2 (void)
	Destructor for SSingleton2.
Public Member Functions inherited from SCmnMap< IFontPtr, FontInfo >
	SCmnMap (void(*funOnKeyRemoved)(const IFontPtr &)=NULL)
	Constructor.
virtual	~SCmnMap ()
	Destructor.
bool	HasKey (const FontInfo &key) const
	Checks if a key exists in the map.
bool	GetKeyObject (const FontInfo &key, IFontPtr &obj) const
	Retrieves an object associated with a key.
IFontPtr &	GetKeyObject (const FontInfo &key) const
	Retrieves an object associated with a key.
bool	AddKeyObject (const FontInfo &key, const IFontPtr &obj)
	Adds a key-object pair to the map.
void	SetKeyObject (const FontInfo &key, const IFontPtr &obj)
	Sets an object for a key, replacing any existing object.
bool	RemoveKeyObject (const FontInfo &key)
	Removes a key-object pair from the map.
void	RemoveAll ()
	Removes all key-object pairs from the map.
size_t	GetCount ()
	Gets the number of key-object pairs in the map.

Static Public Member Functions
static IUiDefInfo *	CreateUiDefInfo ()
	Creates a new UI definition information object.
static ISkinPool *	CreateSkinPool (BOOL bAutoScale=TRUE)
	Creates a new skin pool.
Static Public Member Functions inherited from SSingleton2< SUiDef >
static SUiDef &	getSingleton (void)
	Gets the singleton instance.
static SUiDef *	getSingletonPtr (void)
	Gets the pointer to the singleton instance.
Static Public Member Functions inherited from SFontPool
static void	SetFontChecker (FunFontCheck fontCheck)
	Set the callback function for checking fonts.
static BOOL	CheckFont (const SStringW &strFontName)
	Check if a font is valid.
static FontInfo	FontInfoFromString (const SStringW &strFontInfo, const FontInfo &defFontInfo)
	Convert font description to FontInfo.
static SStringW	FontInfoToString (const FontInfo &fi)
	Convert FontInfo to font description.
static IFontPtr	GetFont (const SStringW &strFont, int scale)
	Get IFontPtr corresponding to the specified description string.
static void	SetDefFontInfo (const SStringW &strFontInfo)
	Set default font.
static FontInfo	GetDefFontInfo ()
	Get default font information.

Protected Attributes
SAutoRefPtr< IUiDefInfo >	m_defUiDefInfo
SList< IUiDefInfo * >	m_lstUiDefInfo
SList< ISkinPool * >	m_lstSkinPools
SAutoRefPtr< ISkinPool >	m_bulitinSkinPool
SCriticalSection	m_cs
Protected Attributes inherited from SFontPool
SAutoRefPtr< IRenderFactory >	m_RenderFactory
FontInfo	m_defFontInfo
Protected Attributes inherited from SCmnMap< IFontPtr, FontInfo >
void(*	m_pFunOnKeyRemoved )(const IFontPtr &obj)
SMap< FontInfo, IFontPtr > *	m_mapNamedObj

Additional Inherited Members
Protected Member Functions inherited from SFontPool
	SFontPool (IRenderFactory *fac)
	Constructor.
const FontInfo &	_GetDefFontInfo () const
	Get constant reference to default font information.
void	SetRenderFactory (IRenderFactory *fac)
	Set render factory object.
IFontPtr	_GetFont (const SStringW &strFont, int scale)
	Get IFontPtr corresponding to the specified description string.
void	_SetDefFontInfo (const SStringW &strFontInfo)
	Set default font description string.
IFontPtr	_CreateFont (const FontInfo &fontInfo)
	Create font object corresponding to FontInfo.
void	_SetDefFontInfo (const FontInfo &fontInfo)
	Set default font information.
Static Protected Member Functions inherited from SFontPool
static void	OnKeyRemoved (const IFontPtr &obj)
	Callback function when FontInfo is removed.
Static Protected Attributes inherited from SFontPool
static FunFontCheck	s_funFontCheck = DefFontCheck

Detailed Description

Manages UI definitions, including skins, styles, templates, gradients, and named values.

This class provides functionality to manage and retrieve various UI resources such as skins, styles, templates, gradients, and named values. It also handles the initialization and management of default UI definitions.

Definition at line 137 of file SUiDef.h.

Constructor & Destructor Documentation

SUiDef()

SUiDef::SUiDef

(

IRenderFactory *

fac

)

Constructor.

Parameters

fac	Pointer to the render factory.

Definition at line 331 of file SUiDef.cpp.

~SUiDef()

SUiDef::~SUiDef

(

void

)

Destructor.

Definition at line 344 of file SUiDef.cpp.

Member Function Documentation

CreateSkinPool()

ISkinPool * SUiDef::CreateSkinPool ( BOOL bAutoScale = TRUE )

static

Creates a new skin pool.

Parameters

bAutoScale

TRUE if automatic scaling is enabled, FALSE otherwise.

Returns

Pointer to the created skin pool.

Definition at line 654 of file SUiDef.cpp.

CreateUiDefInfo()

IUiDefInfo * SUiDef::CreateUiDefInfo ( )

static

Creates a new UI definition information object.

Returns

Pointer to the created UI definition information object.

Definition at line 649 of file SUiDef.cpp.

GetBuiltinSkin()

ISkinObj * SUiDef::GetBuiltinSkin	(	SYS_SKIN	uID,
		int	nScale )

Retrieves a built-in skin object by ID and scale.

Parameters

uID	ID of the built-in skin.
nScale	Scale factor for the skin.

Returns

Pointer to the built-in skin object, or nullptr if not found.

Definition at line 504 of file SUiDef.cpp.

GetBuiltinSkinPool()

ISkinPool * SUiDef::GetBuiltinSkinPool

(

)

Retrieves the built-in skin pool.

Returns

Pointer to the built-in skin pool.

Definition at line 510 of file SUiDef.cpp.

GetColor() [1/2]

COLORREF SUiDef::GetColor

(

const SStringW &

strColor

)

Retrieves a color value from a string.

Parameters

strColor

Color string (e.g., @color/red, rgba(r,g,b,a), rgb(r,g,b), #ff0000).

Returns

Color value as COLORREF.

Definition at line 567 of file SUiDef.cpp.

GetColor() [2/2]

COLORREF SUiDef::GetColor

(

int

idx

)

Retrieves a color value by index from the default resource package.

Parameters

idx	Index of the color.

Returns

Color value as COLORREF.

Definition at line 581 of file SUiDef.cpp.

GetDefFontInfo()

FontInfo SUiDef::GetDefFontInfo

(

)

const

Retrieves the default font information.

Returns

Font information as FontInfo.

Definition at line 671 of file SUiDef.cpp.

GetFont()

IFontPtr SUiDef::GetFont	(	const SStringW &	strFont,
		int	scale )

Retrieves a font object by description and scale.

Parameters

strFont	Font description string.
scale	Scale factor for the font.

Returns

Pointer to the font object, or nullptr if not found.

Description string format example: face:宋体,bold:0,italic:1,underline:1,strike:1,adding:10

Definition at line 659 of file SUiDef.cpp.

GetFontDesc() [1/2]

SStringW SUiDef::GetFontDesc

(

const SStringW &

strFont

)

Retrieves a font description from a string name.

Parameters

strFont

String name (e.g., @font/fontname).

Returns

Font description as a string.

Definition at line 628 of file SUiDef.cpp.

GetFontDesc() [2/2]

SStringW SUiDef::GetFontDesc

(

int

idx

)

Retrieves a font description by index from the default resource package.

Parameters

idx	Index of the font description.

Returns

Font description as a string.

Definition at line 643 of file SUiDef.cpp.

GetGradient()

IGradient * SUiDef::GetGradient

(

const SStringW &

strName

)

Retrieves a gradient object by name.

Parameters

strName

Name of the gradient.

Returns

Pointer to the gradient object, or nullptr if not found.

Definition at line 550 of file SUiDef.cpp.

GetLayoutSize() [1/2]

SLayoutSize SUiDef::GetLayoutSize

(

const SStringW &

strSize

)

Retrieves a layout size from a string name.

Parameters

strSize

String name (e.g., @dim/dimname).

Returns

Layout size as SLayoutSize.

Definition at line 608 of file SUiDef.cpp.

GetLayoutSize() [2/2]

SLayoutSize SUiDef::GetLayoutSize

(

int

idx

)

Retrieves a layout size by index from the default resource package.

Parameters

idx	Index of the layout size.

Returns

Layout size as SLayoutSize.

Definition at line 622 of file SUiDef.cpp.

GetSkin()

ISkinObj * SUiDef::GetSkin	(	const SStringW &	strSkinName,
		int	nScale )

Retrieves a skin object by name and scale.

Parameters

strSkinName	Name of the skin.
nScale	Scale factor for the skin.

Returns

Pointer to the skin object, or nullptr if not found.

Definition at line 464 of file SUiDef.cpp.

GetString() [1/2]

SStringW SUiDef::GetString

(

const SStringW &

strString

)

Retrieves a string value from a string name.

Parameters

strString

String name (e.g., @string/title).

Returns

String value, or an empty string if not found.

Definition at line 587 of file SUiDef.cpp.

GetString() [2/2]

SStringW SUiDef::GetString

(

int

idx

)

Retrieves a string value by index from the default resource package.

Parameters

idx	Index of the string.

Returns

String value, or an empty string if not found.

Definition at line 602 of file SUiDef.cpp.

GetStyle()

SXmlNode SUiDef::GetStyle

(

const SStringW &

strName

)

Retrieves a style XML node by name.

Parameters

strName

Name of the style.

Returns

XML node containing the style, or an invalid node if not found.

Definition at line 516 of file SUiDef.cpp.

GetTemplateString()

SStringW SUiDef::GetTemplateString

(

const SStringW &

strName

)

Retrieves a template string by name.

Parameters

strName

Name of the template.

Returns

Template string, or an empty string if not found.

Definition at line 533 of file SUiDef.cpp.

GetUiDef()

IUiDefInfo * SUiDef::GetUiDef

(

)

Retrieves the default UI definition.

Returns

Pointer to the default UI definition information object.

Definition at line 383 of file SUiDef.cpp.

InitDefUiDef()

BOOL SUiDef::InitDefUiDef	(	IResProvider *	pResProvider,
		LPCTSTR	pszUiDef )

Initializes the default UI definition.

Parameters

pResProvider	Pointer to the resource provider.
pszUiDef	UI definition resource ID.

Returns

TRUE if initialization is successful, FALSE otherwise.

Definition at line 369 of file SUiDef.cpp.

PopSkinPool()

BOOL SUiDef::PopSkinPool

(

ISkinPool *

pSkinPool

)

Pops a skin pool from the stack.

Parameters

pSkinPool

Pointer to the skin pool to pop.

Returns

TRUE if the skin pool is successfully popped, FALSE otherwise.

Definition at line 450 of file SUiDef.cpp.

PopUiDefInfo()

BOOL SUiDef::PopUiDefInfo	(	IUiDefInfo *	pUiDefInfo,
		BOOL	bPreivate = FALSE )

Pops a UI definition information object from the stack.

Parameters

pUiDefInfo	Pointer to the UI definition information object to pop. If NULL, pops the last object.
bPreivate	TRUE if the UI definition is private, FALSE otherwise.

Returns

TRUE if the UI definition is successfully popped, FALSE otherwise.

Definition at line 417 of file SUiDef.cpp.

PushSkinPool()

void SUiDef::PushSkinPool

(

ISkinPool *

pSkinPool

)

Pushes a new skin pool onto the stack.

Parameters

pSkinPool

Pointer to the skin pool.

Definition at line 441 of file SUiDef.cpp.

PushUiDefInfo()

void SUiDef::PushUiDefInfo	(	IUiDefInfo *	pUiDefInfo,
		BOOL	bPreivate = FALSE )

Pushes a new UI definition information object onto the stack.

Parameters

pUiDefInfo	Pointer to the UI definition information object.
bPreivate	TRUE if the UI definition is private, FALSE otherwise.

Definition at line 408 of file SUiDef.cpp.

SetDefFontInfo()

void SUiDef::SetDefFontInfo

(

const SStringW &

strFontInfo

)

Sets the default font information.

Parameters

strFontInfo

Default font description.

Definition at line 665 of file SUiDef.cpp.

SetUiDef()

void SUiDef::SetUiDef	(	IUiDefInfo *	pUiDefInfo,
		bool	bUpdateDefFont )

Sets the default UI definition.

Parameters

pUiDefInfo	Pointer to the UI definition information object.
bUpdateDefFont	TRUE if the default font should be updated, FALSE otherwise.

Definition at line 389 of file SUiDef.cpp.

Member Data Documentation

m_bulitinSkinPool

SAutoRefPtr<ISkinPool> SUiDef::m_bulitinSkinPool

protected

Definition at line 345 of file SUiDef.h.

m_cs

SCriticalSection SUiDef::m_cs

mutableprotected

Definition at line 346 of file SUiDef.h.

m_defUiDefInfo

SAutoRefPtr<IUiDefInfo> SUiDef::m_defUiDefInfo

protected

Definition at line 342 of file SUiDef.h.

m_lstSkinPools

SList<ISkinPool *> SUiDef::m_lstSkinPools

protected

Definition at line 344 of file SUiDef.h.

m_lstUiDefInfo

SList<IUiDefInfo *> SUiDef::m_lstUiDefInfo

protected

Definition at line 343 of file SUiDef.h.

---

The documentation for this class was generated from the following files:

• SOUI/include/res.mgr/SUiDef.h
• SOUI/src/res.mgr/SUiDef.cpp
